Automatically Create SharePoint Document Location for Dataverse/Dynamics 365 Using Cloud Flow (Part 1 of 8)

This is the first post in a series of Automating SharePoint Integration with Dataverse using Power Automate. You can check out the other posts via these links (Part 2, Part 3, Part 4Part 5, Part 6, Part7Part 8)

This post will explain how you can automatically create the SharePoint Document Location using the cloud flow in Power Automate when a new row is added to the Dataverse/Dynamics 365 table.

Microsoft Dataverse supports integration with SharePoint Online and with out-of-the-box functionality, the SharePoint folder and the related Document Location data is created on the fly when the user opens the Documents associated view under the Related tab.

That behaviour is good enough for normal scenarios but sometimes, the SharePoint folder needs to be automatically created as soon as a new row is added to the table. e.g. If there is any automation or integration which uploads the files into the SharePoint document library of the Contact, the SharePoint folder needs to exist. In that case, the out-of-the-box behaviour of SharePoint folder creation is reliable and the integration may attempt to upload the file before the user opens the Documents associated view for the very first time (which creates the SharePoint folder). Instead of adding the logic of SharePoint folder auto-creation to each automation/integration, we can create a cloud flow in Power Automate to automatically create the related SharePoint folder as soon as a new row is added to the table (to make sure that the folder is always ready for other automation/integrations).

Before we jump into creating the cloud flow for this solution, I would like to explain a little bit about how the data in Dataverse/Dynamics 365 is mapped to the URL of the related SharePoint folder. As an example, I will use the Contact table for the following ERD as well as the cloud flow below but it can be applied to any other table with document management enabled.
The SharePoint site URL is stored in the SharePoint Site table and linked to the Document Location table which stores the SharePoint document library name for each table (with logical name). The folder related to the Contact is also stored in the Document Location table and it is linked to the parent Document Location as well as the Contact (or any other table with document management enabled). To replicate the out-of-the-box SharePoint folder creation, we need to create the SharePoint folder under the document library of the table and the Document Location row related to the Contact.

These are all the steps included in the cloud flow for this solution.

The trigger is just on Create of the Contact. The folder name is initialised as a variable since it is being used in a couple of places (and in my actual flow, the value is set in multiple steps too). You can use Compose step as well as filling the same value + expression in multiplaces too (if you want to save API calls). The format of the folder name is «fullname»_«contactid in uppercase without '-'»
toUpper(replace(triggerOutputs()?['body/contactid'], '-', ''))

The next step is to get the URL of the SharePoint site. This step is important so that the Site Address can be dynamically populated and the cloud flow will work when it is deployed to different environments. The library is the logical name of the table ("contact" for this instance).
🛈 Note

If the library is different for some reason (e.g. having too many folders and the library was split), the relativeurl of the latest Document Location needs to be retrieved and dynamically populated into Library parameter.

This is the expression to populate the SharePoint site URL to the site address. Since there will be only one SharePoint site row, first() can be used to prevent the step to get into the loop.

The final step is to create the Document Location and link with the Contact. Before creating the Document Location, its parent Document Location (for the document library) needs to be retrieved. This is the Filter to retrieve the parent Document Location for the Contact document library.
relativeurl eq 'contact' and startswith(parentsiteorlocation_sharepointsite/absoluteurl, 'http')
The additional filter is to make sure to retrieve the Document Location which is linked to the SharePoint Site (in case if there are subfolders with name 'contact').

In the example below, there are multiple Document Locations with relativeurl eq 'contact'.
The first one is the root contact Document Location that we are looking for (which is linked to the SharePoint Site). There can be other Document Locations with relativeurl value 'contact' if the Document Management Settings is configured to create in a folder structure as mentioned in Part 3 of this series. The second condition startswith(parentsiteorlocation_sharepointsite/absoluteurl, 'http') is to filter the only record which is linked to the SharePoint Site (via lookup column parentsiteorlocation but since the lookup is polymorphic lookup, it is postfix with _ + logical name of the SharePoint site table which is _sharepointsite) and check the absoluteurl value of the related SharePoint Site starts with 'http' (as highlighted in the screenshot above). You can read more about filtering based on the value from the related table in this blog post.

🛈 Note

The relativeurl in the filter needs to be updated if the document library is different from the default value.

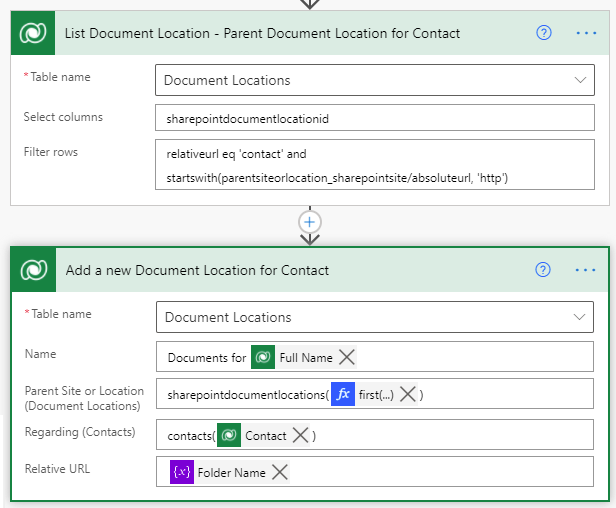

The last step is to create the Document Location by populating the name, lookup to the parent Document Location, lookup to the Contact and the folder name in the Relative URL. The following is the expression to get GUID of the parent Document Location.


By using the Microsoft Dataverse connector and SharePoint connector in Power Automate, the SharePoint Document folder can be automatically created as soon as a row is added to any Dataverse table with document management enabled.


  1. I'm not getting a Regarding (Contacts) option in the last step but everything up to has been fine.

    1. Regarding (Contacts) is setting the Contact lookup column value of the Document Location just to specify that this particular Document Location with SharePoint URL is linked to this Contact. Only then, when the user opens the Documents associated view on the Contact, the system would show the documents from that SharePoint folder.

    2. Sorry Linn, I meant that the Regarding (Contacts) isn't showing up as a field for in the flow. But I am seeing all the other Regarding options.

    3. So sorry. Figured it out. I didn't have the Contact Folder made in Sharepoint. That seems like it would be kinda crucial to this whole thing LOL.

    4. Cool, Nathan. I'm glad it all worked out finally.

  2. Hello Linn, thank you very much for your post! Does this will also move Case email attachments do Contact sharepoint Document?

    1. Yes, it can also be done with the cloud flows and I will cover that scenario in my #6 post of this series.

  3. I am having trouble understanding this statement:
    relativeurl eq 'contact' and startswith(parentsiteorlocation_sharepointsite/absoluteurl, 'http')

    I understand what startswith does after looking at this documentation:

    This is the part I don't get:

    hope that makes sense.

    1. Hi Anthony

      The second condition startswith(parentsiteorlocation_sharepointsite/absoluteurl, 'http') is to filter the only record which is linked to the SharePoint Site (via lookup column parentsiteorlocation but since the lookup is polymorphic lookup, it is postfix with _ + logical name of the SharePoint site table which is _sharepointsite) and check the absoluteurl value of the related SharePoint Site starts with 'http' (as highlighted in the screenshot above).

      I also updated that part of my blog post and added more explanation with a screenshot.

      Hope it makes sense. Feel free to let me know if you have any question.

  4. Hi Linn,

    I am getting this error: "Resource not found for the segment..." for the last step in the regarding row. what can be the issue? I am inserting the 'logical table name'(GUID column)?

    1. Hi Yoav,
      It is supposed to be EntitySetName(GUID column) and not logical name. EntitySetName is usually the plural name of the logical name (e.g. contacts, new_applications, etc.)

      Read more details in my other blog post.

    2. Hi Linn,

      my plural name according to the powerapps is "cr288_hotmelt_units" but this too returns this error...

    3. Hi Yoav,
      Please go through the blog post link above on how to find out the EntitySetName using the API or browser extension. Sometimes, it is not straight forward plural name of the table logical name.

  5. Can this be leveraged when a Team is created through PowerAutomate?

    Example Use Case:
    1) User logs into Model Driven App
    2) User Creates item in Model Driven App.
    3) When item creates new row, a PowerAutomate runs that creates a Team based on that row. Now has a SharePoint Site. (I already have a Flow for these 3 steps that works on manual run.)
    4) The SharePoint URL needs to be added to the Row as a field. (Cannot find how to do this.)
    5) PowerAuomate then needs to send Custom Email Template as documented here, but the SharePoint URL needs to be the one that was just created. (Also, I cannot get the Custom Email Template to populate the field data properly. It only populates when I send manually through the timeline.)
    6) After the attachment(s) are moved to SharePoint, it needs to be deleted from the Dataverse.

    1. 3) If you triggers the step 3 using "When a row is added" trigger of the Dataverse connector (instead of manual run), you will have the SharePoint URL after creating in a SharePoint.
      4) After that, you can update the SharePoint URL back to the row as a field in Dataverse using "Update a row" action.

      5) For sending and email using an Email Template, check out this post. If you saved the data in the field in the step 4, you should be able to populate in the email template.

      6) To delete the Notes attachment from the Dataverse, you can following this blog post.

  6. Hi Linn

    How would this work if using the alternative SharePoint structure (where everything hangs under the account), and where the account Document Location may or may not exist?

    1. Please check out the part 3 post for creating folders for related records under account folder.

      You'll also need to set up this automation for Account onCreate to make sure account Document Location exists.

  7. Wow Linn... what a great series of articles. To be honest, due to time shortage, I only went through the 8 parts diagonally, but I am very interested because we implemented about 1,5 years ago a similar setup (New Case => cloud flow creating a SharePoint folder). Main reason was to 1.) 'Beautify' the folder names, 2.) use DocumentSets instead of Folders and 3.) but more importantly, push certain case fields to SharePoint Metadata (amongst with a deeplink to the case, allowing users to open the case form in Dynamics directly from the SharePoint Metadata).
    But one thing, up untill today, I was not able to solve: there is a slight delay between dynamics record creation and finalisation of the flow. If a user creates a case and immediatly opens the 'Documents' tab, the default flow kicks in and a default folder is generated. I'll solve this with some Javascript (to only show 'Documents' tab if there is at least one document location linked to the case) but I was wondering: Do you know if it is possible to desactivate the default SharePoint folder creation flow WITHOUT disabling the SharePoint integration entirely?
    Again, thanks for the great tutorials serie! Will most definitly check these out!

    1. As far as I know, there's no way to disable the default SharePoint folder creation. Other than the JavaScript solution that you mentioned, you may add a step in your folder auto creation flow to check if there's any existing folder. If there's any existing one, move the files inside that OOB folder into your custom folder and delete the OOB folder.

    2. This is because cloud flows are asynchronous and don't run in real time - which means there is a delay between when the record gets created and when the cloud flow runs.

      To make this cloud flow run in real time when a record is created you could use an instant cloud flow with a http request trigger. You could then trigger the workflow using a webhook.

  8. Hi Linn, thank you for this information, it is really helpful.

    I have created my Power Automate Flow with the steps to retrieve the parent document location, and to create the new document location, but I am getting this error for the 'create document location' step:

    URL was not parsed due to an ODataUnrecognizedPathException. Resource not found for the segment provided in the URL.

    This is the 'raw input' that shows after the Flow runs:

    "item/parentsiteorlocation_sharepointdocumentlocation@odata.bind": "sharepointdocumentlocations(dc6c3009-3009-ed11-82e6-002248ae4003)",

    I have tried many different syntaxes, such as using forward slashes, but I cannot get past this error.


    Any idea on what else I can try?

    Thank you!

    1. Well, as often happens, I figure out the solution to my problem after I submitted the issue :)

      I was using the correct syntax for the "Parent Site of Location" field "sharepointdocumentlocations(GUID)", but I also needed to specify the table plural name in the "Regarding" field:


      Thanks again for all of your awesomely useful posts, Linn!

  9. Thank you! Really good and working Information! Keep going!
